Built for Focused, Consistent Production
The SFT90 is engineered for manufacturers producing 89mm light gauge steel (LGS) frames and trusses, providing a reliable and efficient solution for modular construction and residential building systems.
It is designed to deliver consistent output in environments where accuracy, repeatability and production stability are critical to project delivery.
What the SFT90 Delivers
The SFT90 is configured to produce essential structural components used across modular and light gauge steel construction, including:
89mm steel wall frames
Roof trusses
Structural framing components

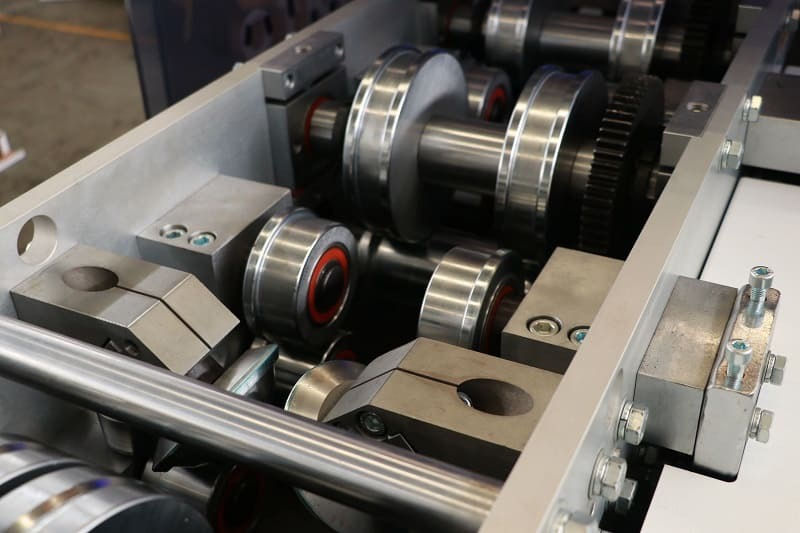

All profiles are produced through an integrated rollforming process, combining punching, forming and cutting into a single streamlined workflow. This reduces manual handling and ensures alignment between design and production.
Key Capabilities
The SFT90 integrates a range of features designed to improve manufacturing efficiency and reduce variability in output:
Precision punching with ±1mm tolerance for consistent accuracy
Flared service holes to simplify installation and eliminate grommets
Automatic gauge adjustment to accommodate varying material thickness
Integrated punching and forming for continuous production
Together, these capabilities reduce manual intervention, improve repeatability and support efficient light gauge steel manufacturing.
Technical Specifications
The SFT90 is configured for high-speed, precision production within standard light gauge steel manufacturing environments:
Material thickness: 0.75mm – 1.2mm
Working speed: up to 12 metres per minute
Flare control: 2 groups of rollers control coil
Levelling Device: 4 rollers to flatten coil before rolling
Main drive system: 7.5kW servo motor
Powered decoiler: 3.0 tonne capacity
Runout frame: 4 metres
This specification provides a compact, efficient production setup suitable for modular and residential framing applications.
Applications
The SFT90 is suited to a range of light gauge steel and modular construction environments, including:
Entry-level light gauge steel manufacturing operations
Modular builders producing standardised framing systems
Residential construction projects requiring consistent frame output
Operations transitioning from manual fabrication to automated production
Production Value
The SFT90 provides a practical entry point into automated steel frame manufacturing, delivering measurable improvements in production performance:
Consistent, repeatable output for frames, trusses and joists
Reduced reliance on manual fabrication and skilled labour
Improved production efficiency and workflow stability
Alignment with modular construction and offsite manufacturing processes
